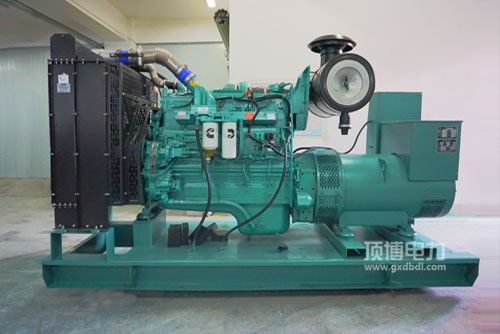

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯来发电用启因素柴油国家可持续性好: 发达的柴油电机控制系统设计的，别具一格 的STC、ESTC 分级制度电机控制系统设计的，特别的设计的柱塞最上层点燃室，高压力喷洒柴油，做好雾化吸入，点燃做好。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电机组用打着机瞬态安全性能优等: 很好的打着机整体性设定，配合康明斯独特性的EFC整体，调节gps精性高，崩溃时光快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯生产发电用热车机升工作效率高: 综合装修设计紧促.形态摆置科学，程序运行能保持稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷型号 QSNT. QSK19. QSK38. QSK50提供国内 非主干道最后关键期及北美洲Tier2. Tier 3摆放法律规范必须。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件必须得要性好， 热车机运营及维护皮肤保养便利性，人工效率高。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电率范围图 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观长宽高 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净效率 Dry Weight   940kg

224-310KW康明斯火力发电用发起机的作用：面积小， 收缩变高， 格栅板氧气采暖器，更能启用，中国移动车载电子电源适配器的好的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机规格型号	通用效率(kW)Prime Power	应急马力kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
